Water treatment plants
Systems sized from the raw water analysis and the required output quality.
Equipment built around your process
NMECH Engineering designs, analyses and fabricates water treatment systems, process equipment and custom skids at its own facility in Ahmedabad, for customers in India, Australia, Europe and the Middle East.
- 2026Founded
- Ahmedabad, GujaratDesign and fabrication
- SS 316Stainless fabrication
- ANSYSMechanical and CFD analysis
01 / Company
An engineering practice that also runs the shop floor
NMECH Engineering is an engineering and manufacturing company based in Ahmedabad, Gujarat. We build customised industrial equipment, water and wastewater treatment systems, process equipment and precision fabricated assemblies.
Most equipment problems are not solved by picking a model from a catalogue. They are solved by understanding the process first, then sizing, selecting materials and detailing the fabrication around it. That is the work we do, and because design and fabrication sit in the same hands, what gets drawn is what can actually be built.
We supply individual equipment as well as complete skid based assemblies, tested before they leave the works.
02 / Expertise
What we engineer
Twelve areas where we design, size and build equipment to the duty rather than to a standard model.
Effluent treatment plants
ETP built to the effluent load and the discharge limits at the site.
Sewage treatment plants
STP for industrial premises, townships and commercial buildings.

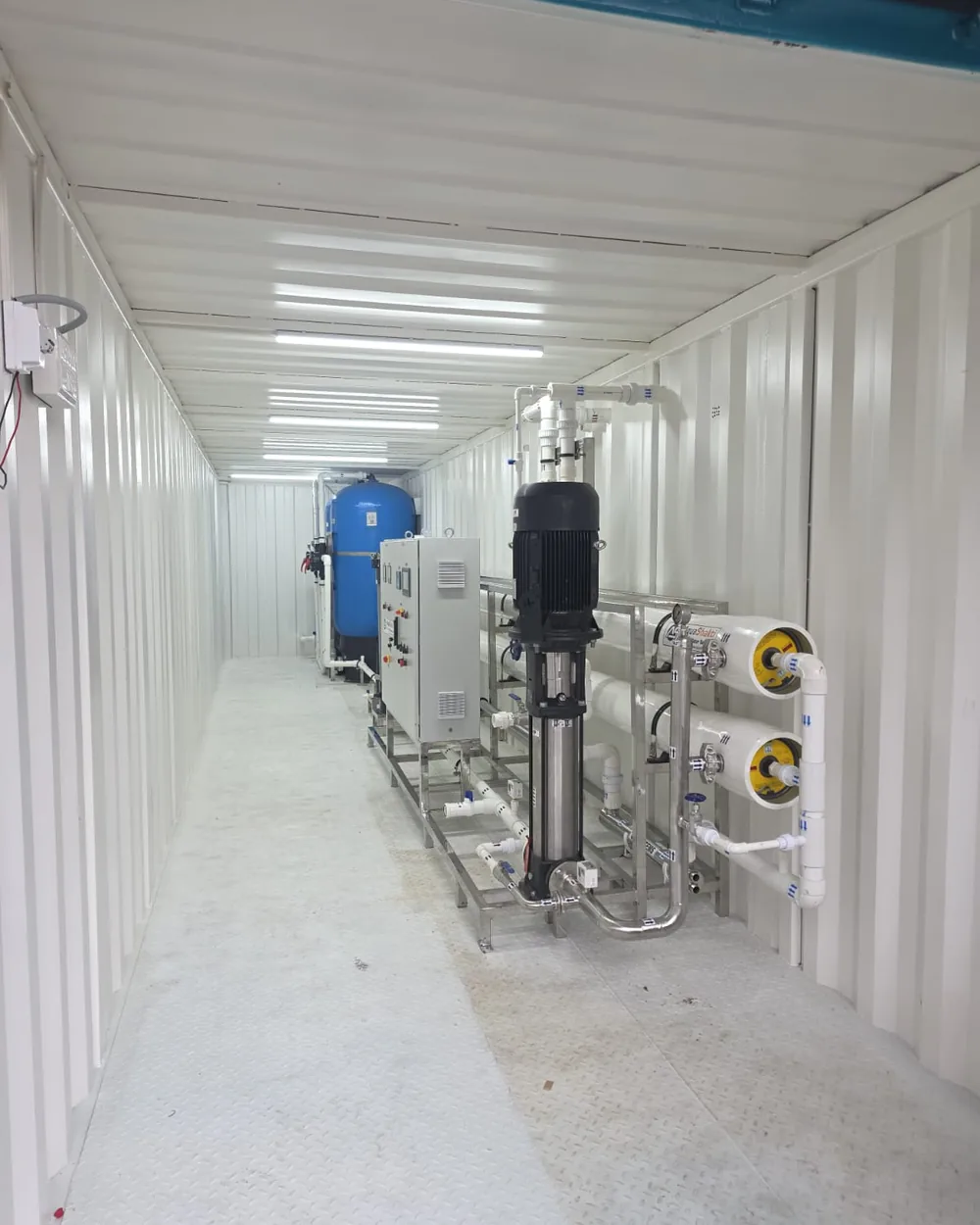

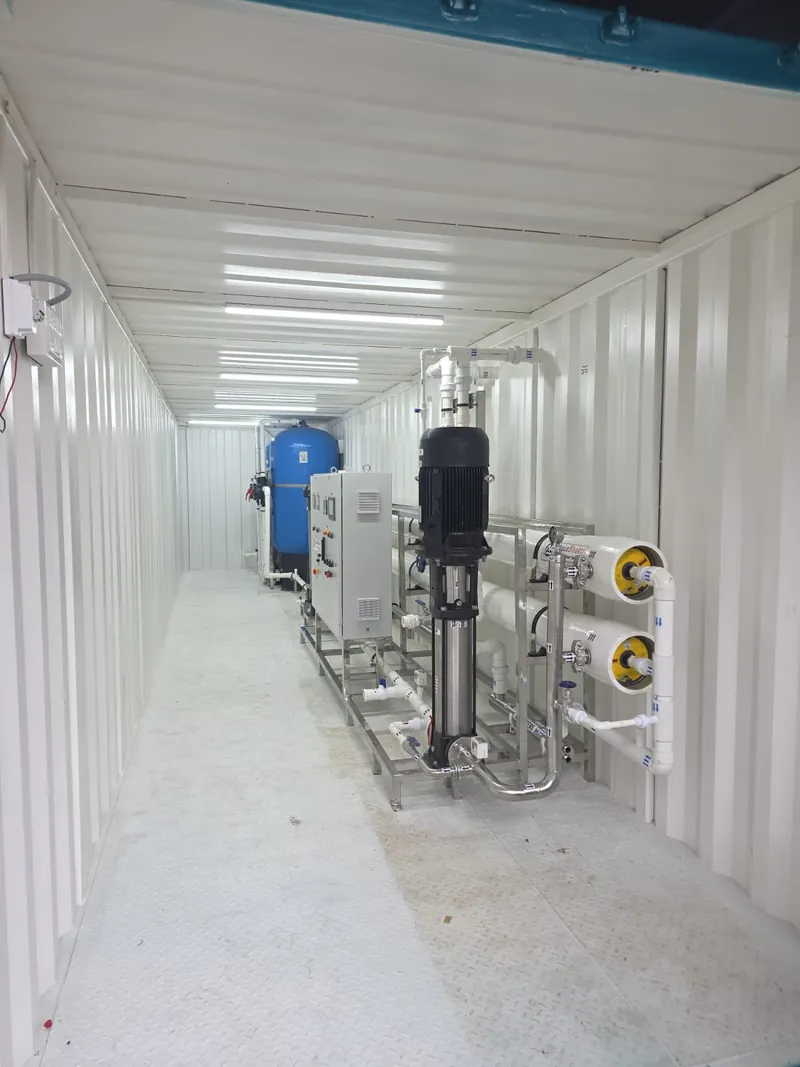

Reverse osmosis plants
RO with pretreatment matched to the feed water, not a fixed package.
Sand and multimedia filtration
Pressure filters with media selection and correct underdrain design.

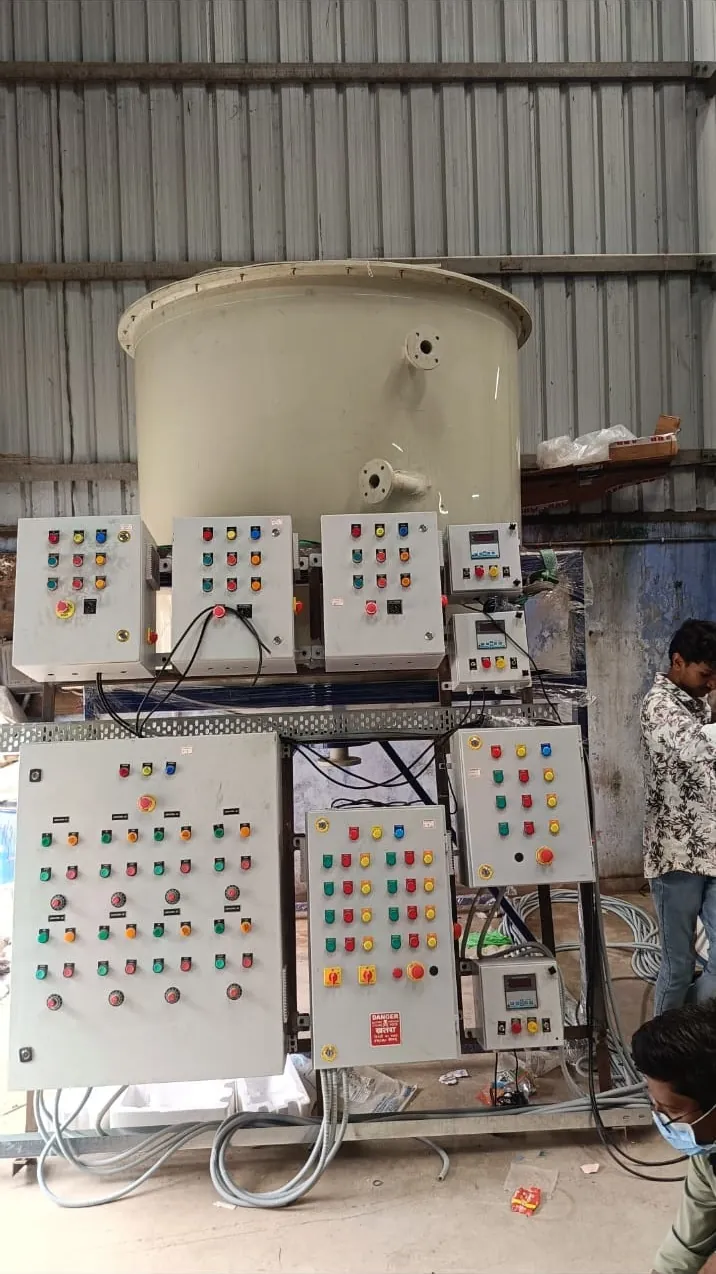

Chemical dosing systems
Accurate dosing with the wetted materials chosen for the chemical.

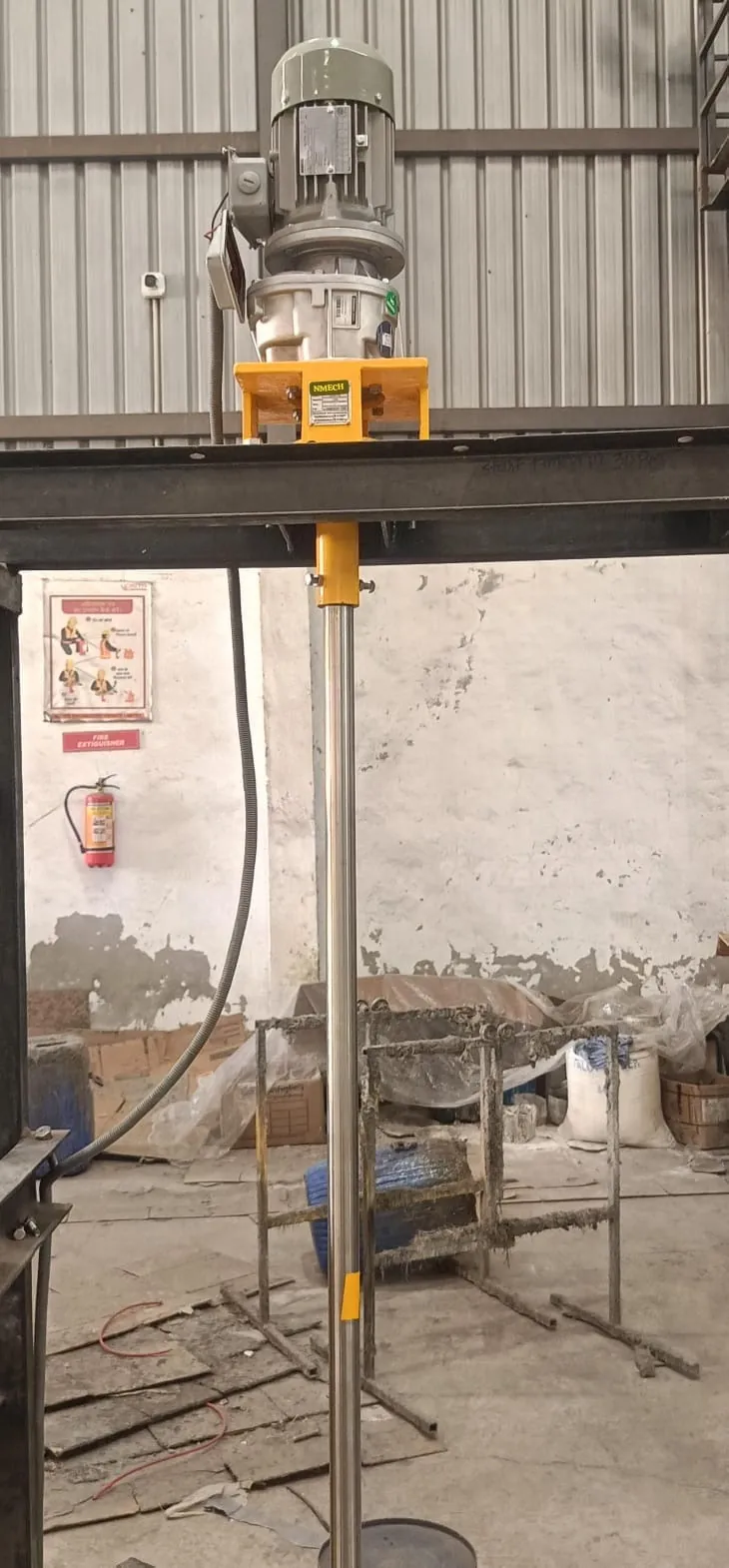

Industrial agitators and mixers
Impeller and shaft selected for the duty, checked for deflection.

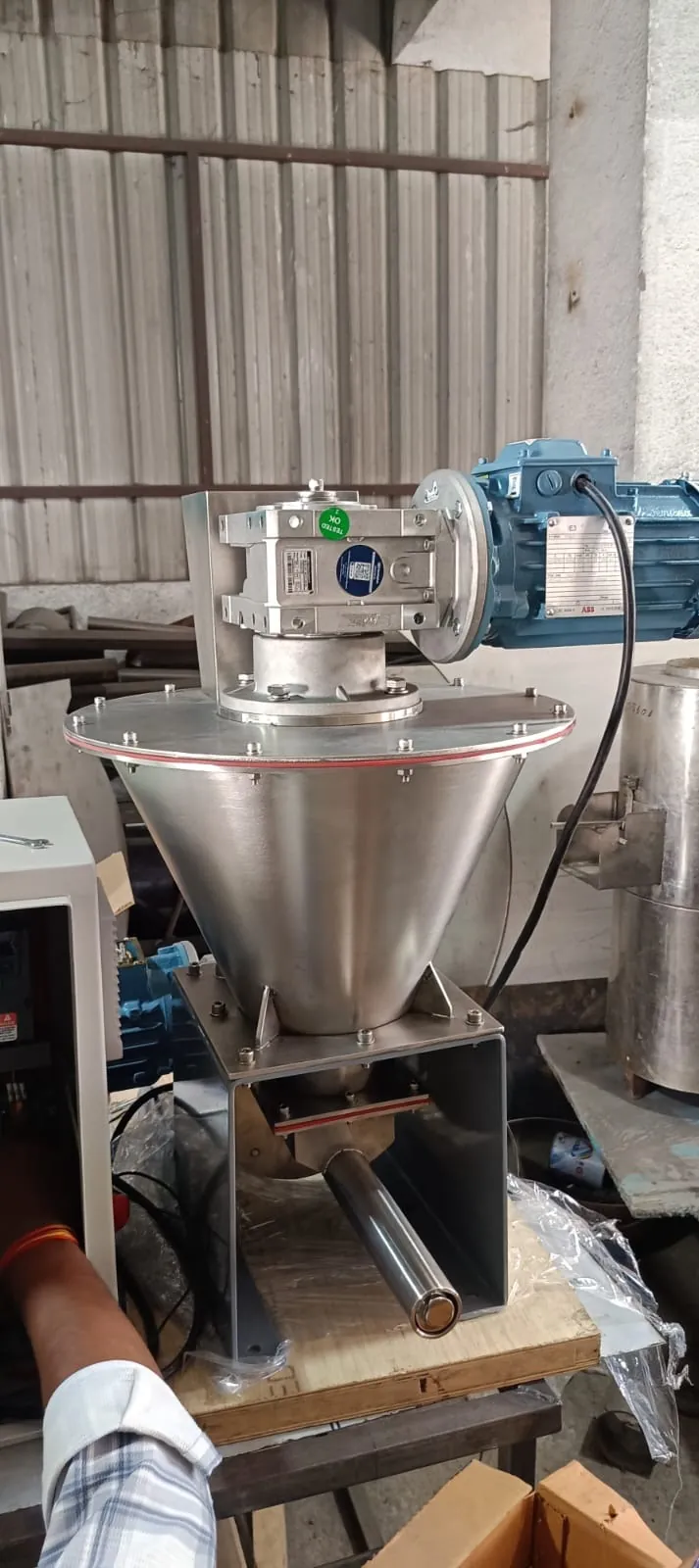

Micro powder feeders
Controlled feed of fine and low density powders at small rates.
SS 316 equipment and fabrication
Stainless fabrication where corrosion and hygiene decide the material.
Customised skid fabrication
Pre piped, pre wired skids so site work stays short.
Industrial process equipment
Vessels, tanks and assemblies built to the process conditions.
Specialised engineering projects
One off equipment where nothing off the shelf fits the requirement.
03 / Products
Product range
Seven product families, each engineered to the application. Open any entry for typical specifications and where it is used.
- Drive
- 0.25 to 15 kW, helical or worm geared
- Speed
- 30 to 1500 rpm, fixed or VFD controlled
- Impellers
- Pitched blade turbine, hydrofoil, Rushton, anchor, propeller
- Shaft
- Checked for deflection and critical speed
- Materials
- SS 316, SS 304, mild steel with coating, PP lined
- Mounting
- Top entry flange or side entry, open or closed tank
Typical applications
- Feed rate
- From a few grams per hour up to kilograms per hour
- Hopper
- 5 to 100 litres, sized to the refill interval
- Metering
- Single or twin screw, VFD speed control
- Anti bridging
- Internal agitator or flexible hopper wall
- Contact parts
- SS 316 as standard
- Options
- Loss in weight version with load cells
Typical applications
- Skid frame
- SS 304, SS 316 or painted mild steel
- Pumps
- Diaphragm or peristaltic, single or multi stream
- Standard fittings
- Calibration column, pulsation damper, back pressure and relief valves
- Piping
- uPVC, PP, PVDF or SS 316 to suit the chemical
- Instrumentation
- Pressure gauges, level switches, flow indication
- Control
- Local panel, PLC and HMI optional
Typical applications

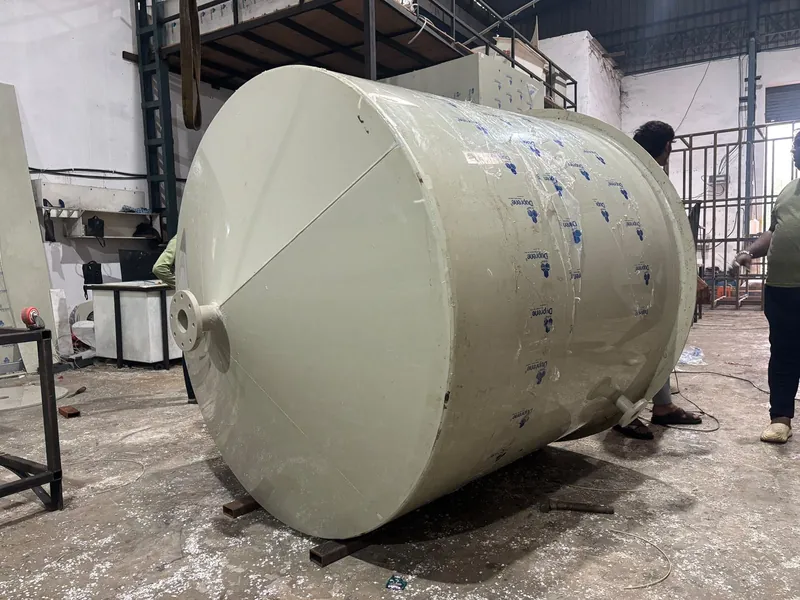

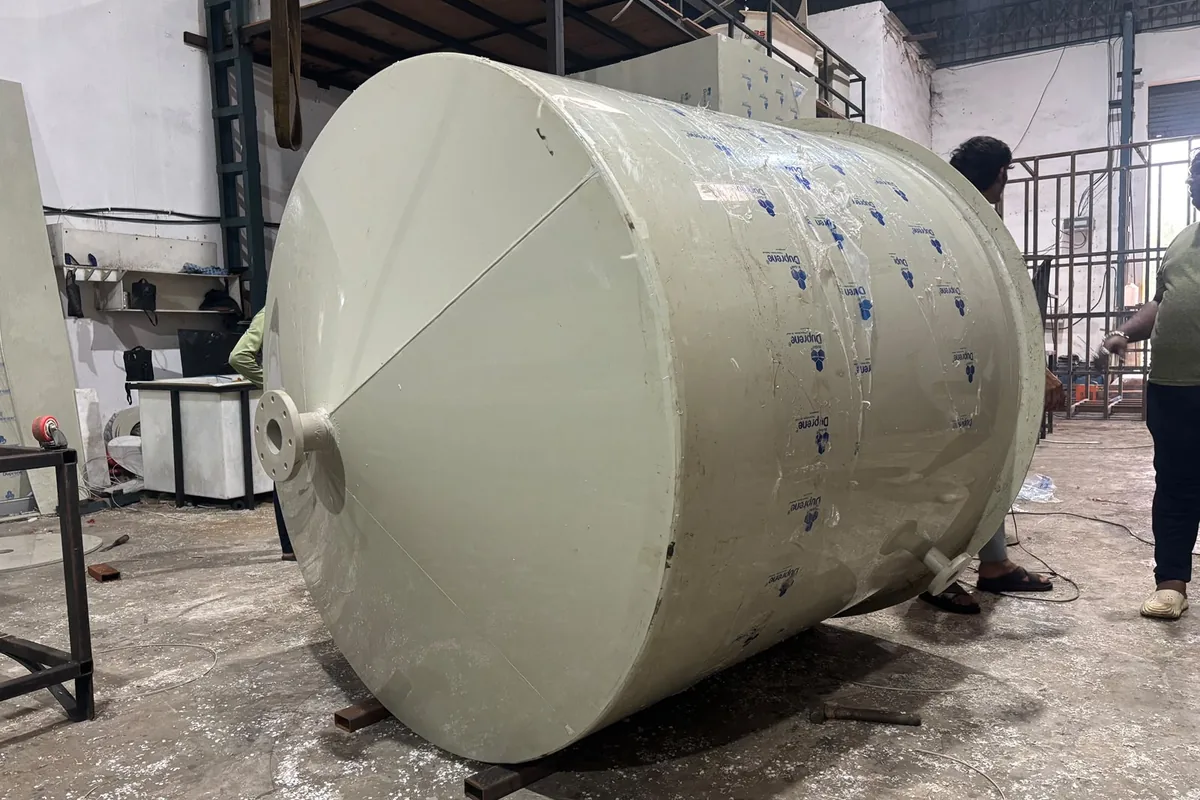

- Capacity
- 50 to 10,000 litres
- Construction
- Moulded or fabricated PP and HDPE
- Internals
- Baffles, dip pipes, agitator mounting bridge
- Fittings
- Inlet, outlet, drain, overflow, vent, level indication
- Support
- Stiffener rings and base frame where required
- Selection
- Material matched to chemical, concentration and temperature
Typical applications
- Capacity
- 250 litres per hour upwards to industrial scale
- Pretreatment
- Multigrade sand filter, activated carbon filter, softener where needed
- Dosing
- Antiscalant, and dechlorination where required
- Cartridge filter
- 5 micron, multi cartridge housing
- High pressure pump
- Multistage vertical or horizontal
- Membranes
- Thin film composite spiral wound, FRP or SS 316 housings
- Control
- Manual, semi automatic or PLC with HMI
- Cleaning
- CIP arrangement on request
Typical applications
- Capacity
- 5 KLD upwards
- Processes
- Activated sludge, MBBR, SBR and MBR options
- Primary
- Screening, oil and grease removal, equalisation
- Secondary
- Diffused or surface aeration, clarification
- Tertiary
- Pressure sand and carbon filtration, disinfection
- Sludge
- Thickening, filter press or drying beds
- Construction
- Civil tanks with internals, or packaged in MS and FRP
Typical applications
- Types
- Electronic solenoid driven and motor driven mechanical diaphragm
- Flow
- Up to about 100 litres per hour per head, model dependent
- Pressure
- Up to 10 bar, model dependent
- Wetted parts
- PP, PVDF, SS 316, PTFE diaphragm
- Control
- Manual stroke, external pulse, 4 to 20 mA
- Accessories
- Foot valve, injection assembly, suction lance with level switch
Typical applications
Figures shown are typical ranges. Final selection follows from your process data, duty conditions and site constraints.
04 / Manufacturing
Made in our own facility

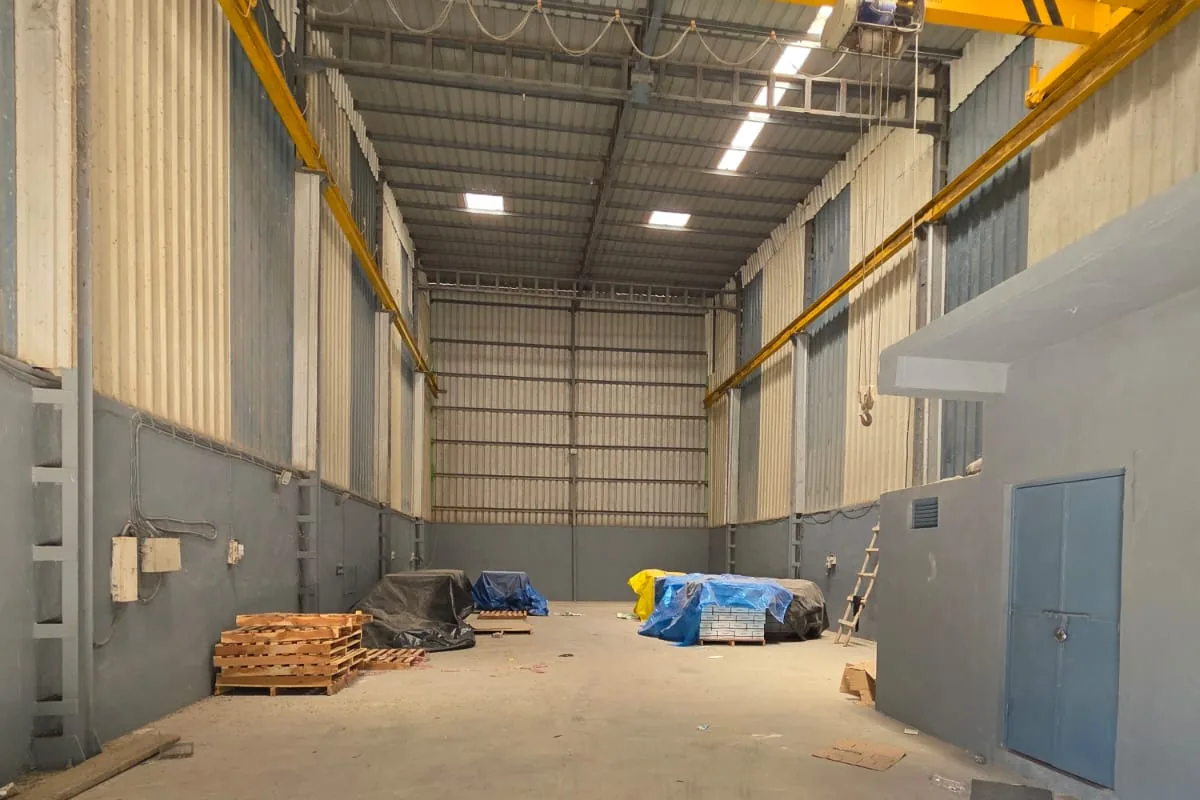

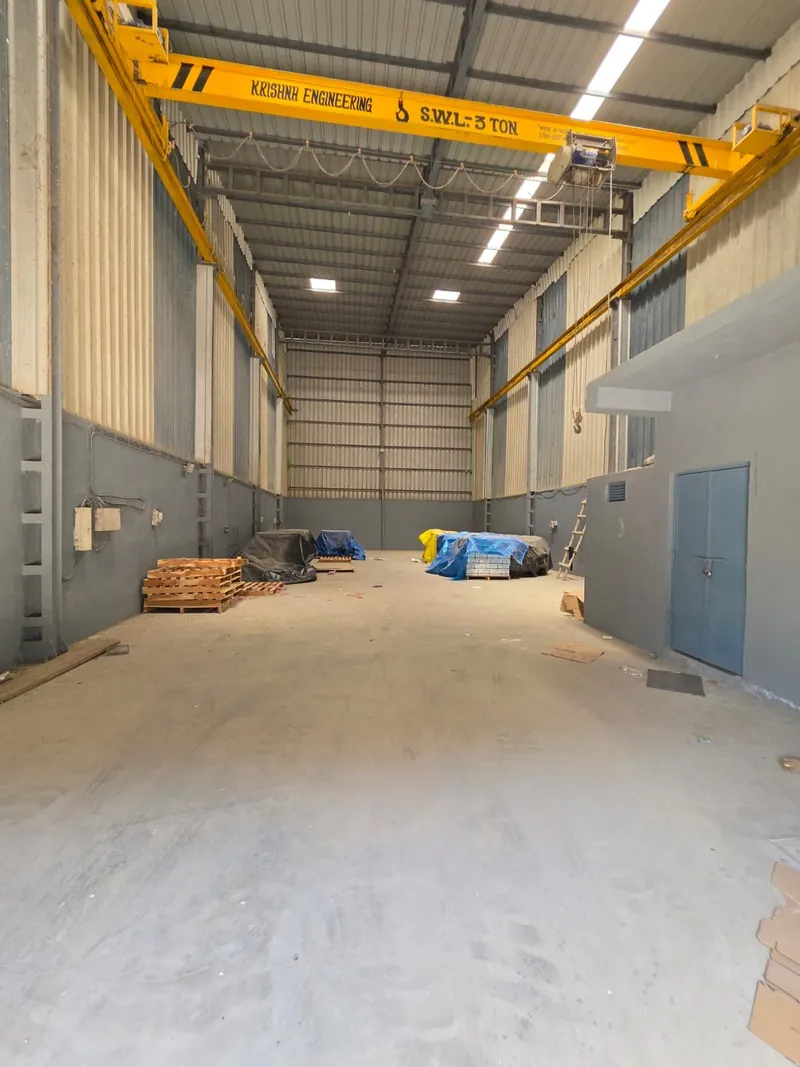

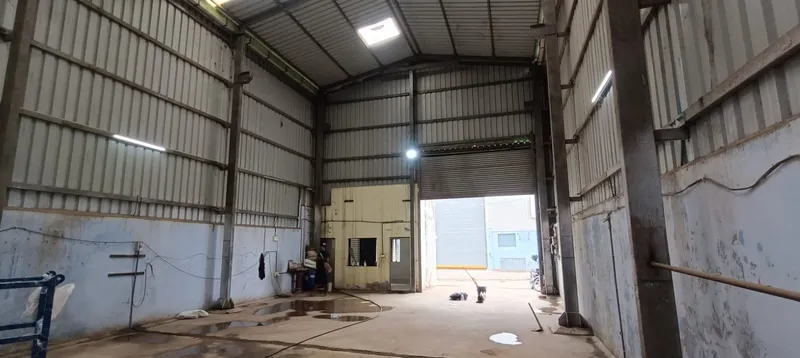

Fabrication happens at our works at Divine Industrial Estate, Bakrol, near Ahmedabad. Keeping manufacturing in house is what lets us take on equipment that has never been built before: drawings can be corrected at the bench, fit up problems get solved the same day, and nothing waits in a subcontractor's queue.
We have particular capability in SS 316 fabrication and in skid mounted assemblies where piping, pumps, instrumentation and the frame all have to come together within a fixed footprint.

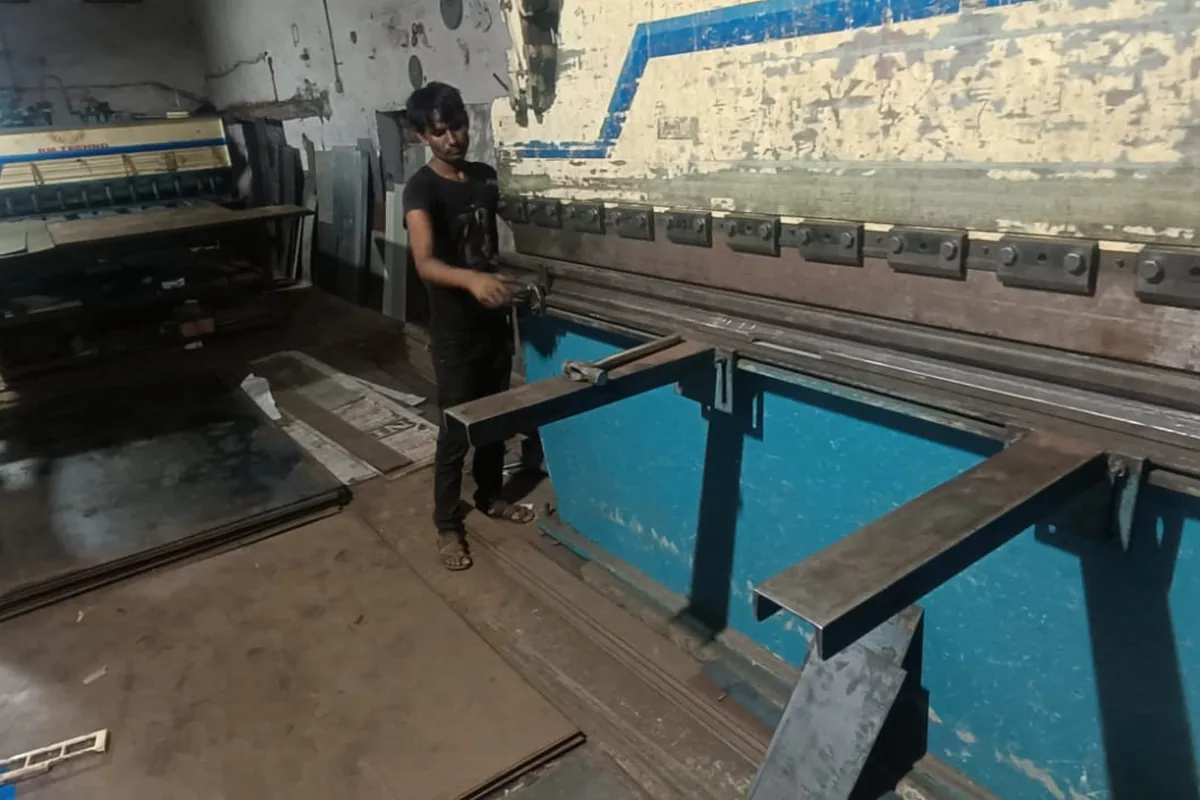

- 01Sheet and plate cutting, rolling and forming for vessels, hoppers and housings

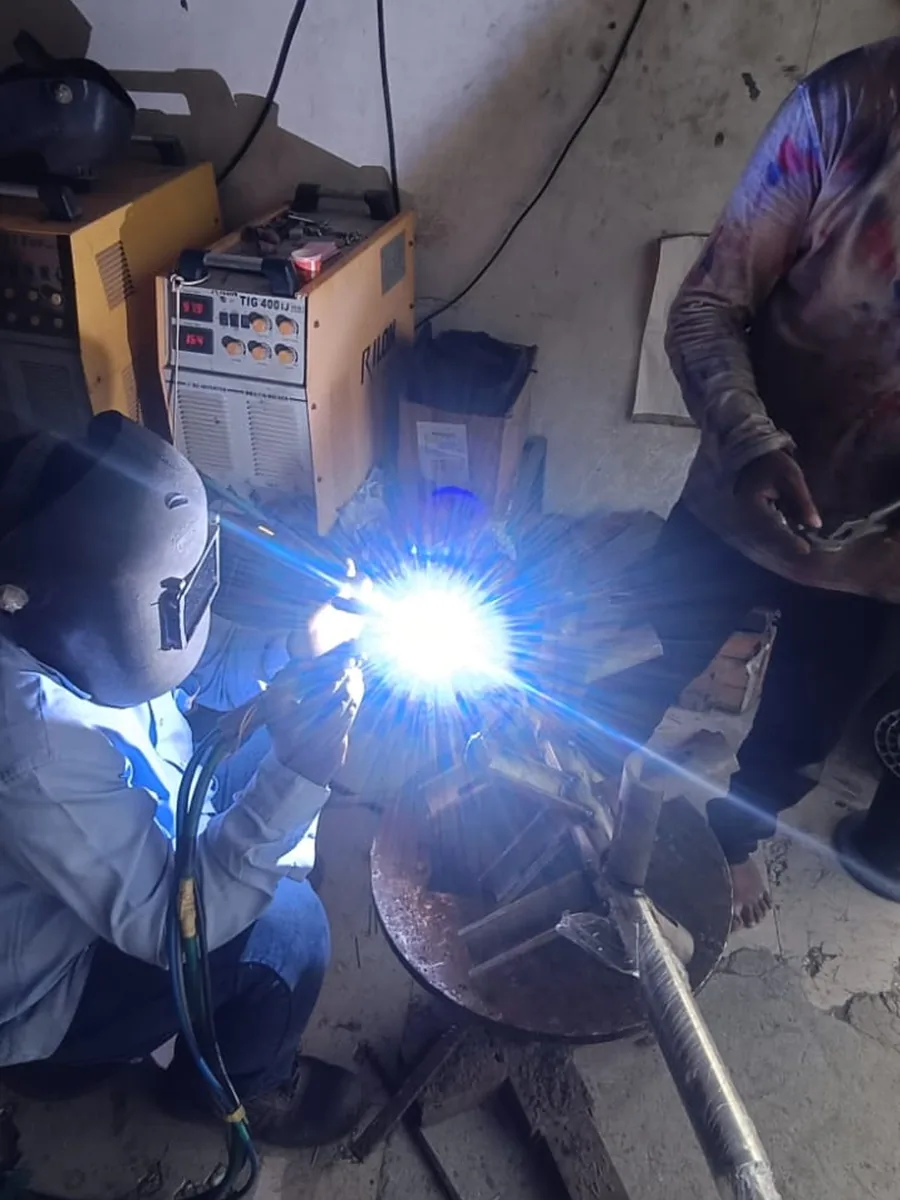

- 02TIG and MIG welding of stainless steel and mild steel, with pickling and passivation

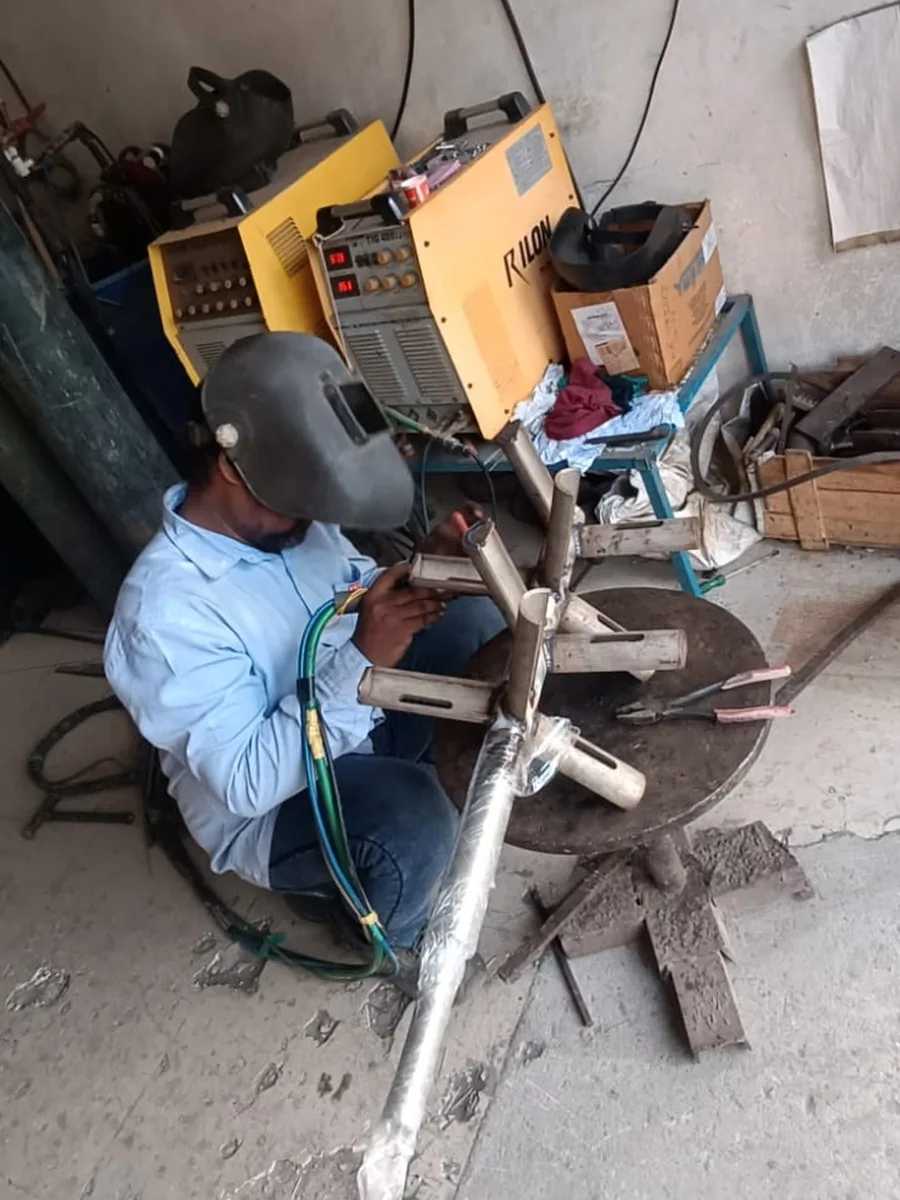

- 03Machining of shafts, hubs, flanges and mounting components
- 04Skid frame fabrication, piping, valve and instrument mounting
- 05Mechanical assembly, alignment and trial running before dispatch
- 06Surface finishing, painting and dispatch packing for export
3D model of a skid mounted agitated tank, modelled in house
05 / Engineering
Analysis before fabrication
Custom equipment carries risk that catalogue equipment does not. We reduce it by checking the design numerically before anything is cut.
-
Structural analysis in ANSYS Mechanical
Stress, deflection and modal checks on shafts, vessels, supports and frames, so components are sized on evidence rather than on rule of thumb.
-
Flow analysis with CFD
Mixing patterns, velocity distribution and flow behaviour studied where the process depends on how the fluid actually moves.
-
3D modelling and detailing
Full models of the equipment and the skid layout, with clash checks, before fabrication drawings are released.
-
Sizing and material selection
Capacity, duty point and material grade chosen against the operating conditions, the chemical and the space available.
06 / Approach
How a project runs
Five stages, each closed out before the next one starts.
-
Stage 1
Understand
Process, duty, chemical, capacity, site constraints and what the equipment has to achieve.
-
Stage 2
Design
Concept, sizing, material selection and layout within the available footprint.
-
Stage 3
Engineer
3D model, analysis where it matters, then fabrication drawings and a bill of materials.
-
Stage 4
Fabricate
Manufacturing at our own works, with inspection at each stage of assembly.
-
Stage 5
Deliver
Trial run, packing, dispatch documentation and support through installation.
07 / Gallery
Work and facility
Equipment under fabrication, completed assemblies and the shop floor.
08 / Markets
Where we supply
Equipment is engineered in Ahmedabad and shipped against export documentation. Enquiries from outside India are handled in English, with drawings, data sheets and dispatch documents issued in the formats your side needs.
- Import export code
- CVZPG6688N
- GSTIN
- 24CVZPG6688N1ZC
- Established
- 2026
- IN
India
Direct supply and site support across Gujarat and the rest of the country.
- AU
Australia
Custom equipment and skid assemblies shipped against project specifications.
- EU
Europe
Fabricated process equipment and stainless assemblies to drawing.
- ME
Middle East
Water treatment and dosing systems for industrial and commercial sites.
Build equipment we would be willing to stand next to on the day it starts.
09 / Contact
Tell us what you need to build
Send the process details you have. Capacity, chemical, operating conditions and site constraints are enough to start a discussion.
